This Article shows you how to Load Balance RDS 2012 Remote Desktop Web Access services (RDWA) using KEMP's LoadMaster.

I am using one Kemp VLM 100 in this example.

Configure DNS

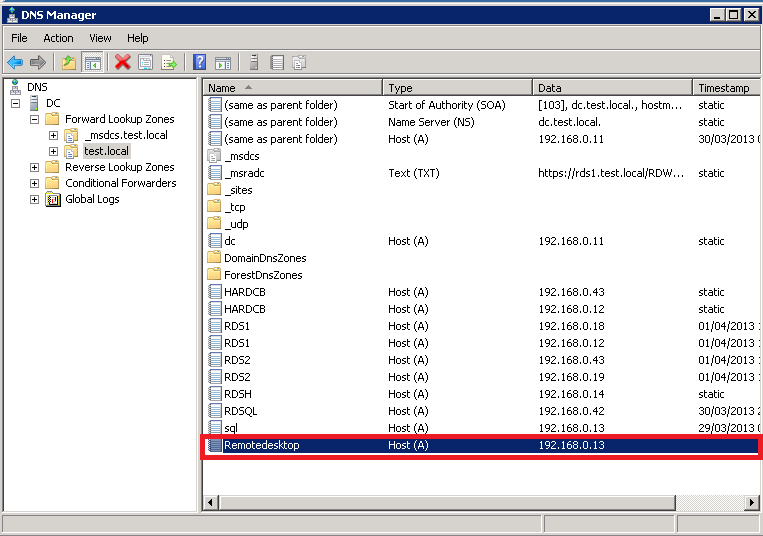

Create an A record for the NLB Web Address.

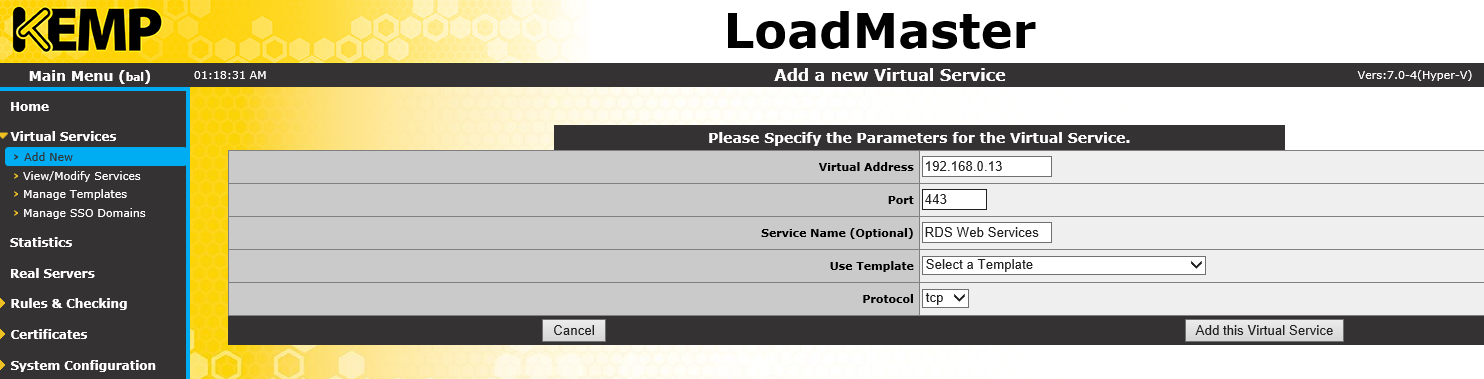

Creating a Virtual service for RDWeb

Select the TCP Port 443

Standard Options:

Give the service a Name and under scheduling method, select Weighted Least connection.

What is Weighted Least Connection:

"If the servers have different resource capacities the “weighted least connection” method is more applicable: The number of active connections combined with the various weights defined by the administrator generally provides a very balanced utilization of the servers, as it employs the advantages of both worlds. This is, in general, a very fair distribution method, as it uses the ratio of the number of connections and the weight of a server. The server in the cluster with the lowest ratio automatically receives the next request.."

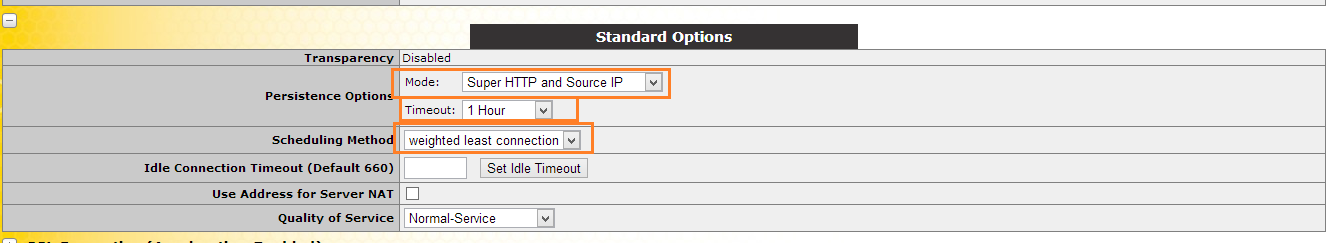

persistence Options: Supper HTTP and Source IP

Timeout: 1 Hour

What is Supper HTTP Persistence:

"Super HTTP is the recommended method for achieving persistence for HTTP and HTTPS services . It  creates a unique fingerprint of the client browser and uses that fingerprint to preserve connectivity to the correct Real Server. The fingerprint is based on the combined values of the User-Agent field and, if present, the Authorization header. Connections with the same header combination will be sent back to the same Real Server."

What is Source IP Persistence:

"Source IP Address persistence uses the source IP address of the incoming request to differentiate between users. This is the simplest method of persistence, and works for all TCP protocols, including those that aren't HTTP related. Source IP Address persistence is the only persistence option that can be used in conjunction with Content Switching or Direct Server Return deployments."

SSL Properties

Import your RDS Cert (SAN Certificate).

With SSL acceleration, the SSL session is terminated at the LoadMaster.

Why use re-encryption :

• High security environments Re-encryption means that data is never sent in cleartext.
• Regulatory requirements HIPAA and financial regulations may require encryption at all times
• Unsupported Application, Certain applications either require changes or may not support SSL acceleration. Re-encryption avoids changes needed on the application server

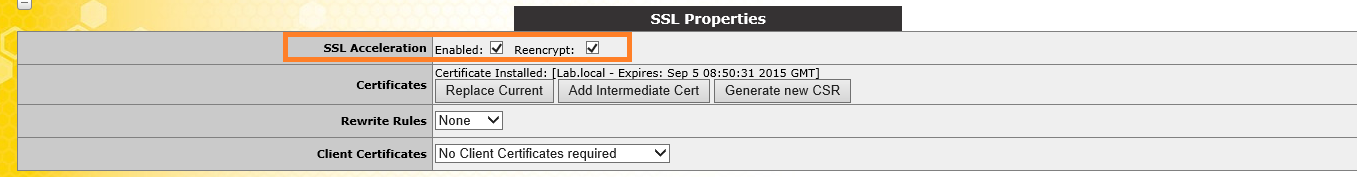

Ensure SSL Acceleration and Reencrypt is selected and add the RDWEB SSL Certificate.

ReWrite Rules: None when using the Redirector Feature

Client Certificates: No Client Certificates required

Advanced Properties

Use the default unless using the Port 80 redirector feature.

For more information on the Port 80 Redirector feature:

http://ryanmangansitblog.wordpress.com/2013/09/04/redirect-rds-2012-web-http-traffic-to-https-using-kemps-loadmaster/

Real Servers

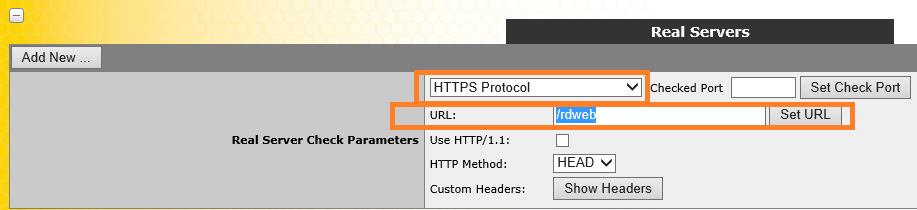

Select the HTTPS Protocol from the dropdown.

Real Server Check Parameters URL: /rdweb

Add the RDWA servers.

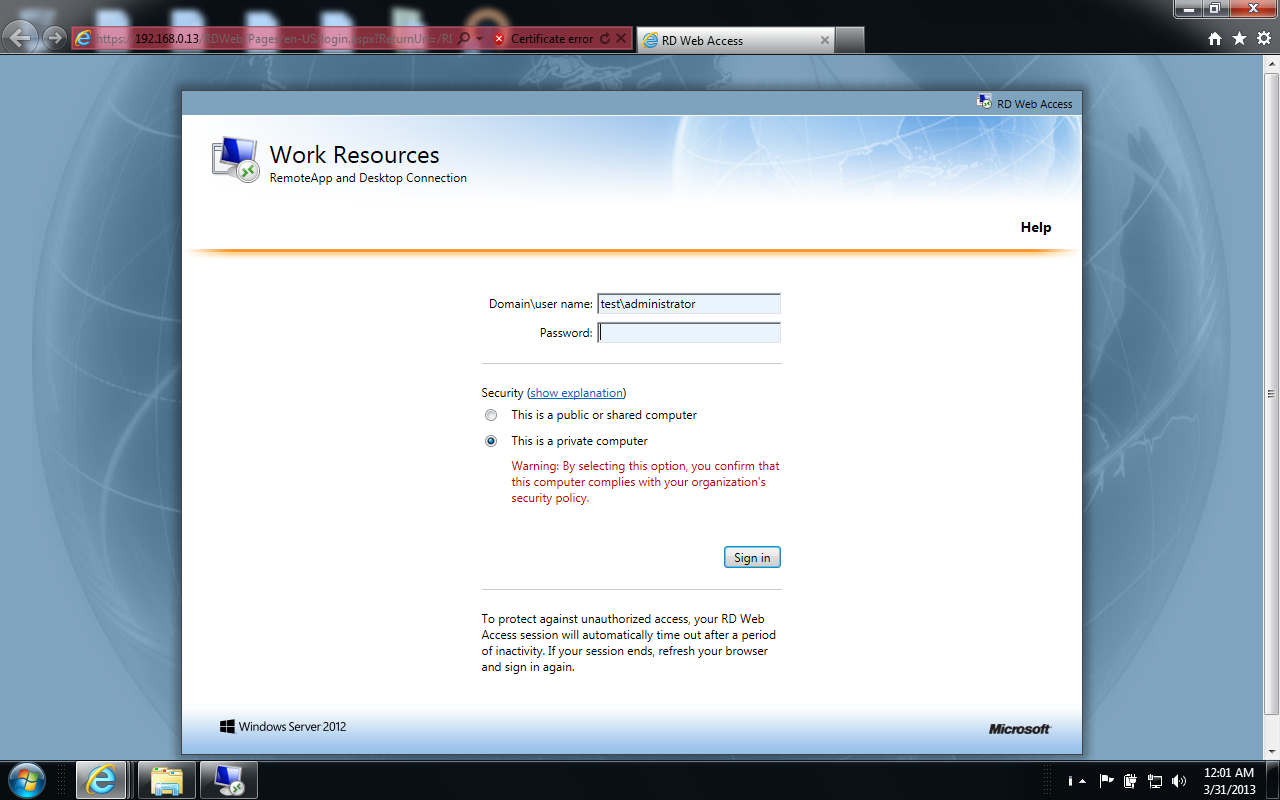

There you have it RDS 2012 RDWA Load Balanced using KEMP.
